digital DC resistivity instrument

ADD: NO.1 Kuaileli, Xiaolongkan Street, Shapingba District, Chongqing China:
Skype: lucyfang9 ; Website:www.lucydrillingrig.com, email: lucyfang15@yahoo.com
Phone no.: 0086-13628481197; 0086-15111813754; 0086-15923510719

Applications:　

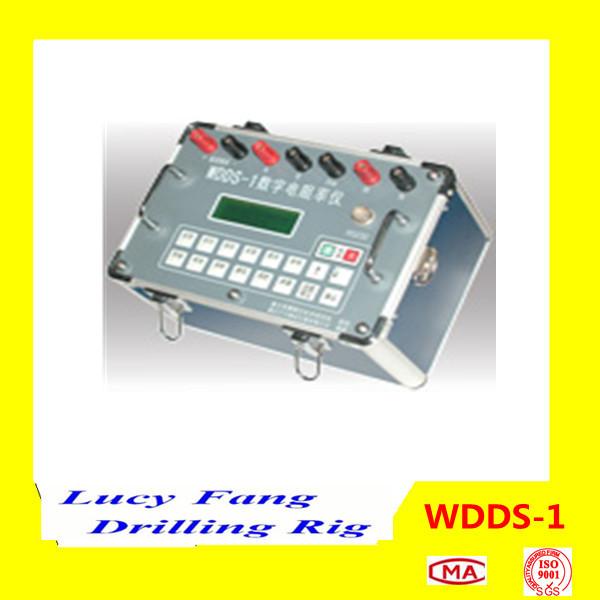

WDDS-1 is a new generation intelligence multi-electrode resistivity instrument. It can automatically measure and memorize voltage, current, apparent resistivity, and SP parameter. It is widely used in the hydrological and engineering survey, such as ground water seeking; dam base evaluation and flood control dam incipient fault and so on. It also can be applied in engineering geological prospecting, such as metal-nonmetal mineral resources exploration, urban exploration, railway and bridge, even in the geothermal exploration..

Technical specifications:

　Transmitter

• Maximum supply voltage: 700V
• Maximum supply current: 3.5A (over-current protection)
• Supply waveform: repeating ON+, ON-

　Receiver

• Input impedance: ≥30M
• Input voltage range: -6V ～ +6V,±1%±1
• Delay time: 0.1～5s (can be setted by program)
• Automatic SP compensation range: -1 to +1V
• Ground resistance: 0.1 ～ 200KΩ±3%
• 50Hz industrial frequency pressing:≥60dB
• Current measurement: 3.5A, ±1% ±1 LSB

　Other

• LCD display: 4 line×20character
• Operating temperature: -10℃～50℃
• Power: eight C size batteries (or same specs nickel-cadmium battery)
• Power consumption:≤70mA(working) ≤30mA(stand-by)
• Weight: 6Kg
• Dimensions (L×W×H): 240mm×170mm×160mm

Details See Attached File:
