China Cheapest XY-2B Skid Mounted Spindle Typre Soil Testing Drilling Rig For Sale in Hong Kong

Ask Lasest Price
Model Number :	XY-2B
Certification :	ISO9001-2008
Price :	1-12000USD/set
Payment Terms :	T/T or L/C
Supply Ability :	1000 sets/year
Delivery Time :	stocked

Add to Cart

Product Details
Company Profile

China Cheapest XY-2B Skid Mounted Spindle Typre Soil Testing Drilling Rig For Sale in Hong Kong

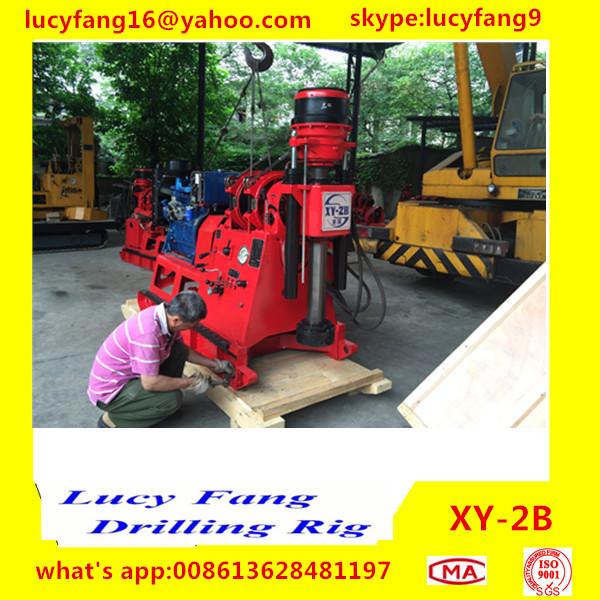

XY-2B Portable Core Drilling Rig

ADD: NO.1 Kuaileli, Xiaolongkan Street, Shapingba District, Chongqing China
Skype: lucyfang9 , Website: www.lucydrillingrig.com email: lucyfang15@yahoo.com;
M: +86-13628481197 TEL.:+86-15111813754 ; +86-15923510719

Applications:

XY-2B drill rig derived from XY-2 drill rig, it not only keeps all performances of XY-2 drill, but also adds spindle inner hole diameter to 96mm. It is mainly used in shallow and medium deep diamond and tungsten carbide core drilling, can also be used in geotechnical, hydro-geological, water well and mini-pile grouting hole drilling.It is especially suitable for constructions of hydroelectric power station, highway, railroad and harbor etc. In common with XY-2 drill in all design but hydraulic chuck and rotary head modified.

Technical Specifications

Drilling capacity (m)	AW rod	530 m
	BW rod	420 m
	NW rod	320 m
	AQ rod	565 m
	BQ rod	460 m
	NQ rod	350 m
	HQ rod	250-300 m
	Φ73 rod	100 m
	Φ60 rod	200 m
	Φ50 rod	380 m
	Φ42 rod	530 m
Spindle speed(r/min)	Forward	57;99;157;217;270;470;742;1024
Spindle speed(r/min)	Reverse	45;212
Max torque(Nm)		3200
Angle range		0-90°
Spindle max pulling/pushing force(KN)		60/45
Spindle stroke (mm)		560
Hoist max lift capacity with single rope (KN)		30
Spindle inner dia. (mm)		96
Oil pump		CBK1020/8
Power unit	Electric motor	Y180L-4,22Kw
Power unit	Diesel engine	395K2,19.85Kw
Overall dimension(LWH) mm		2220×900×1880
Drill weight(excluding power)(kg)		1200
