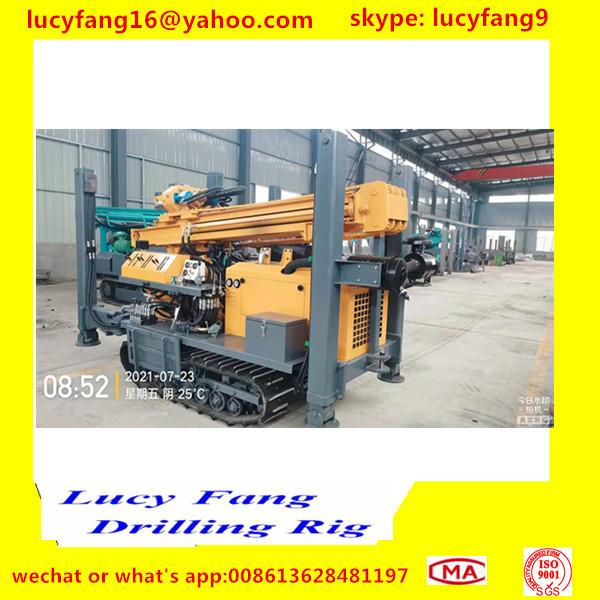

Track Mounted High Drilling Efficiency Water Well Drilling Rig with DTH hammer Drilling

Ask Lasest Price
Brand Name :
Model Number :
Certification :	ISO901,CE
Payment Terms :	T/T, L/C, D/A, D/P, Western Union
Supply Ability :	1+set+

Add to Cart

Product Details
Company Profile

Track Mounted High Drilling Efficiency Water Well Drilling Rig with DTH hammer Drilling

Sweies of water well drilling rig

Application field:

Main USES and teatures of products:

series well drilling rig is a kind of light, high efficient and muiti-function crawler-type full hydraulic drill, has advanced structure, easy to use, configuration standardization, short assistant time, fast drilling rock , low failure rate characteristics, widely used om drilling wells, wells and other holes engineering, espcially suitable for urban construcion in zonetie source heat pump air conditioning hole drilling. The series of drilling rigs uses compressed-air DTH to drill at high rates of penetration into rock in the Prinell f 620 range.

Technology specification

180 Water Well Drilling Rig
The weight	4.5	Drill pipe diamater	Ø76 Ø89
The hole diamater (mm)	140-254	Drill pipe length	1.5m 2.0m 2.6m
Drilling depth (m)	180	Rig lifting force (f)	12
One-time advance length (m)	3.3	Rapid rise speed (m/min)	20
Walking speed (km/h)	2.5	Fast feeding speed (m/min)	48
Climbing angles (Max)	30	Width of loading (m)	2.4
Equipped capadtor (kw)	55	Hoisting force of winch (T)
Using air pressure (MPA)	1.7-2.5	Swing torque (N.m)	3200-4500
Air consumption (m³/min)	17-23	Dimension (mm)	3950x1630x2250
Swing speed (mm)	46-70	equipped with hammer	Medlum and high wind pressure series
The pentration efficiency (m/h)	10-35	High leg stoke (m)	1.4
The engine brand		Quanchai engine
