    2019 New Arrival Good Quality Tractor Track Mounted Mobile Hydraulic Water Well Drilling Rig For 120 m Depth

    Ask Lasest Price
    Model Number : CST-150T，200T,300T
    Certification : ISO9001-2000
    Price : US+100+set
    Payment Terms : T/T
    Supply Ability : 500 a quarter
    Delivery Time : one month
    • Product Details
    • Company Profile

    2019 New Arrival Good Quality Tractor Track Mounted Mobile Hydraulic Water Well Drilling Rig For 120 m Depth

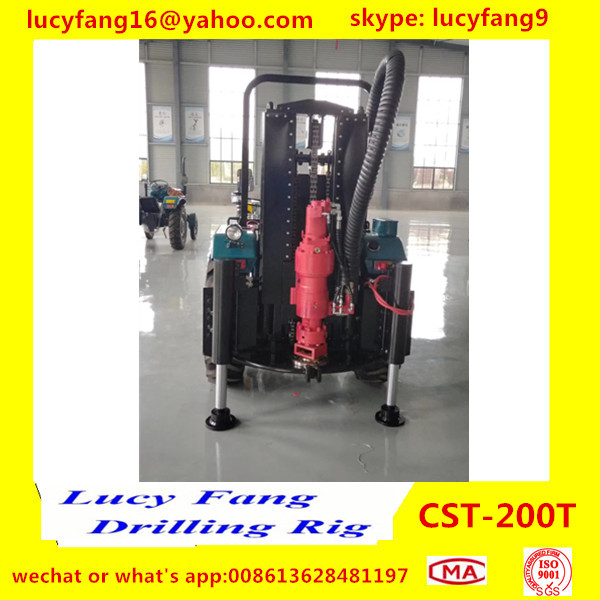

    Tractor Mounted Water Well Drilling Rig


    Technical Specifications


    modelCST-150TCST-200TCST-300T
    Power22.1KW37KW44.2KW
    Drilling Depth150 m200 m300 m
    Drilling hole diameter90-235 mm90-235 mm130-325 mm
    Working pressure0.7-2.5MPa0.7-2.5MPa1.05-3.0MPa
    Carriage stroke1800/20001800/2000 mm2400/3400 mm
    Max. torque3500 N.m4500 N.m6500N.m
    Boost speed20m/min20m/min20m/min
    Rotation speed60-80rpm80/160 rpm80/160 rpm
    Drilling pipe length1500 mm1500 mm2000/3000 mm
    Static height1950 mm2150 mm3300 mm
    Adapt to rock hardnessF=6-20F=6-20F=6-20
    Air consumption5-30m³/h5-30m³/h5-35m³/h
    Min.ground clearance400 mm400 mm400 mm
    Lifting force39200N58800N88200N
    Climbing angle30°30°30°
    Drilling efficiency10-35m/h10-35m/h15-35m/h
    Drilling pipe diameter76 mm76/89 mm76/89 mm
    Total weight2300(including tractor)2700(including tractor)6200(including tractor)
    Overall dimension3300*1350*1950 mm3350*1450*2100mm3900*1850*3300 mm
    Fit DTH hammer4/5/6 inches4/5/6 inches5/6/8 inches
    Recommended air compressor18m³/1.7 MPa20m³/2.0 MPa900-1200
